Cryogel adhesion removal

Freeze a post-surgical adhesion band in a dye-loaded gel, then crack it with near-infrared laser pulses instead of cutting it.

Coursework concept · Not built or tested
Cryogel adhesion removal, concept sequenceFour panels. 1: a laparoscopic instrument sprays ICG-loaded alginate cryogel onto an adhesion band between intestine and abdominal wall. 2: the coated band is frozen to minus 18 degrees C. 3: a fiber delivers 800 to 810 nm pulses and the band cracks. 4: suction removes the fragments.01CoatINTESTINEABDOMINAL WALLICG-loaded alginate cryogelsprayed on the band02Freeze−18 °CGel and band freezecold and brittle03Pulse800–810 nm pulses, 0.1–10 ms;thermal shock cracks the band04RemoveSuction clears iceand tissue fragments

01 · Coat. A laparoscopic instrument sprays ICG-loaded alginate cryogel onto the adhesion band between intestine and abdominal wall.

The concept sequence, drawn from the course report. Schematic, not to scale.

Course
BME 250, University of Illinois Chicago
Timeline
Fall 2025 · about 5 weeks
Team
4 students
My part
Material, structure and laser-parameter selection; safety review

01Problem

Adhesions form in over 90% of patients after intra-abdominal surgery. These bands of scar tissue tie the intestine to itself, to other organs or to the abdominal wall, and can cause pain and bowel obstruction. Cutting them takes another operation, and they can grow back. We set out to break bands apart without cutting them.

02Requirements and constraints

Delivered laparoscopically through a standard 5 mm port, for bands up to Zühlke grade 3. Grade 4, where organs are fused, was excluded for safety. Neighboring organs must not freeze or burn. Four requirements, each with a test, are in the table below.

Design requirements and planned verification
RequirementPlanned testStatus
Cryogel is biocompatibleCytotoxicity testNot run
Cryogel freezes to −18 °CTemperature measured with a thermometerNot run
Cryogel absorbs the laser’s 800 nm lightSpectroscopy, Beer–Lambert lawNot run
Laser breaks adhesionsProcedure on scar-tissue models of varied thickness and densityNot run

03Design decisions and why

01Match the light to a dye, not to tissue.
Indocyanine green (ICG) absorbs near 800 nm, the output of common diode lasers, and water-rich tissue absorbs little there. Loading the gel with ICG puts the energy in the gel (selective photothermolysis).
02Make the gel brittle on purpose.
EDC crosslinking forms short, rigid “zero-length” bonds, and in our source data EDC/NHS gave the largest mean pore size of five crosslinkers (165 ± 86.5 µm). Rigid bonds and large pores favor fracture. Alginate is biocompatible and inexpensive.
03Crack by thermal shock, not ablation.
Pulses of 0.1–10 ms heat the gel’s surface while its core stays below −5 °C, so the warm shell expands against the frozen core and the band fractures.
04Reuse surgical hardware.
The laser stays outside the body. A 0.2–1 mm fiber runs through the port in a three-lumen instrument that sprays gel, delivers light and suctions fragments.

04What I did

I selected the materials, device structure and laser parameters from the primary literature, and reviewed usability and safety during surgery, including the risk of freezing or burning nearby organs. I also modeled the three-lumen instrument in SOLIDWORKS 2025 (see CAD).

05Outcome and limits

A concept report; nothing was built or tested. On review, three gaps stand out: nothing names what cools the band to −18 °C inside a 37 °C abdomen, no laser power or pulse energy is given, and the pore-size data comes from chitosan/collagen hydrogels, not alginate cryogels.

06What I’d do next

  • Add a cooling source: an argon Joule–Thomson cryoprobe (1.5–3 mm shafts, already used in cryosurgery) through a second port.
  • Measure the gel’s absorbance, then set pulse energy on gel phantoms before any tissue.

07CAD

My SOLIDWORKS 2025 model of the three-lumen instrument: distal tip, shaft, handle, gel, fiber and suction ports, and the optical fiber. Section A–A checks the fit. A 4.8 mm shaft holds all three lumens with walls of at least 0.35 mm, and clears a 5 mm trocar by 0.1 mm on each side. Where the coursework gave no dimension, the value is an assumption.

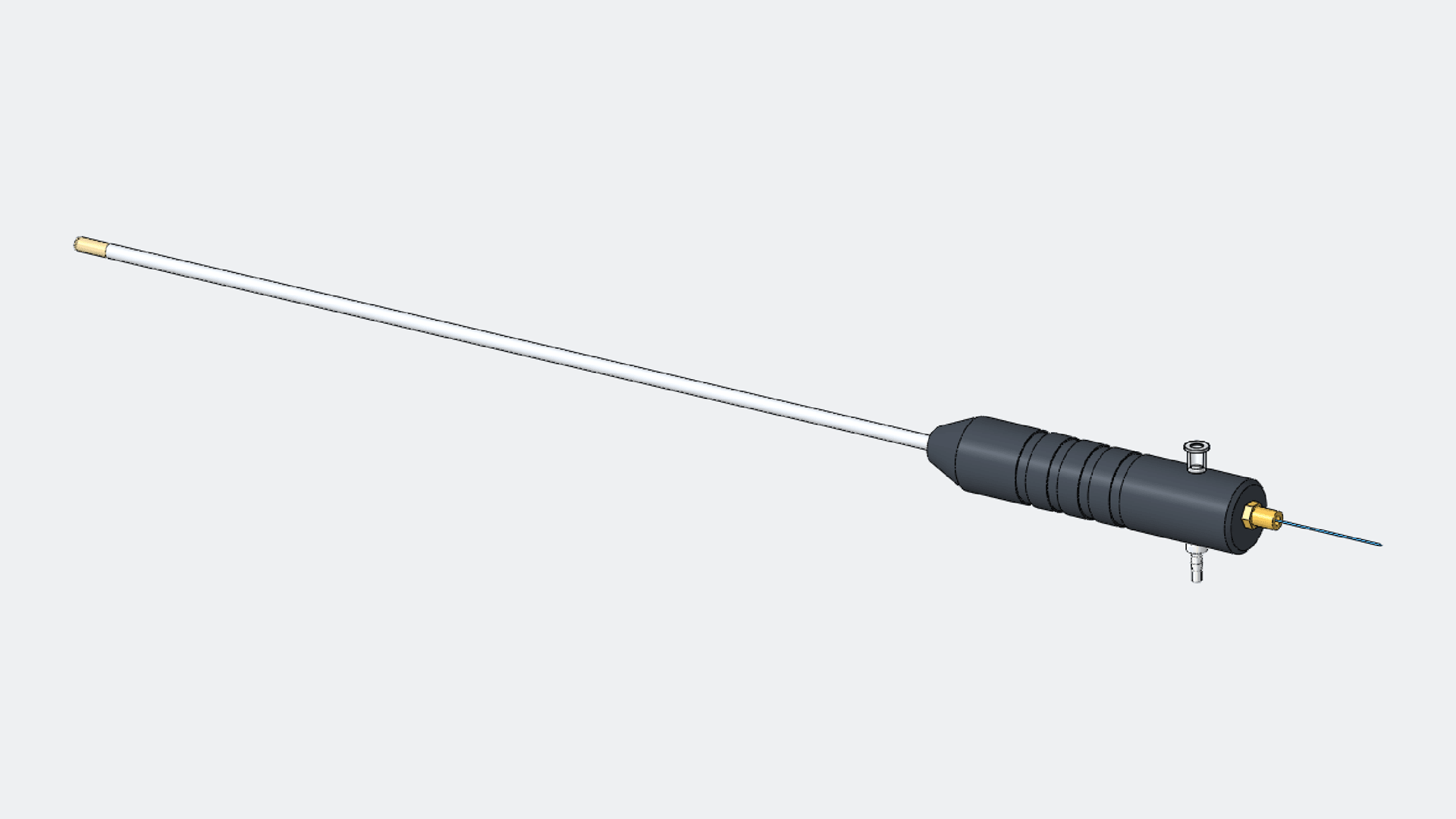

Isometric render of the three-lumen laparoscopic instrument: a 330 mm steel shaft with a tan distal tip, a dark grooved handle with a gel port on top and a suction barb below, and an SMA connector at the rear with the optical fiber leaving it.
Isometric

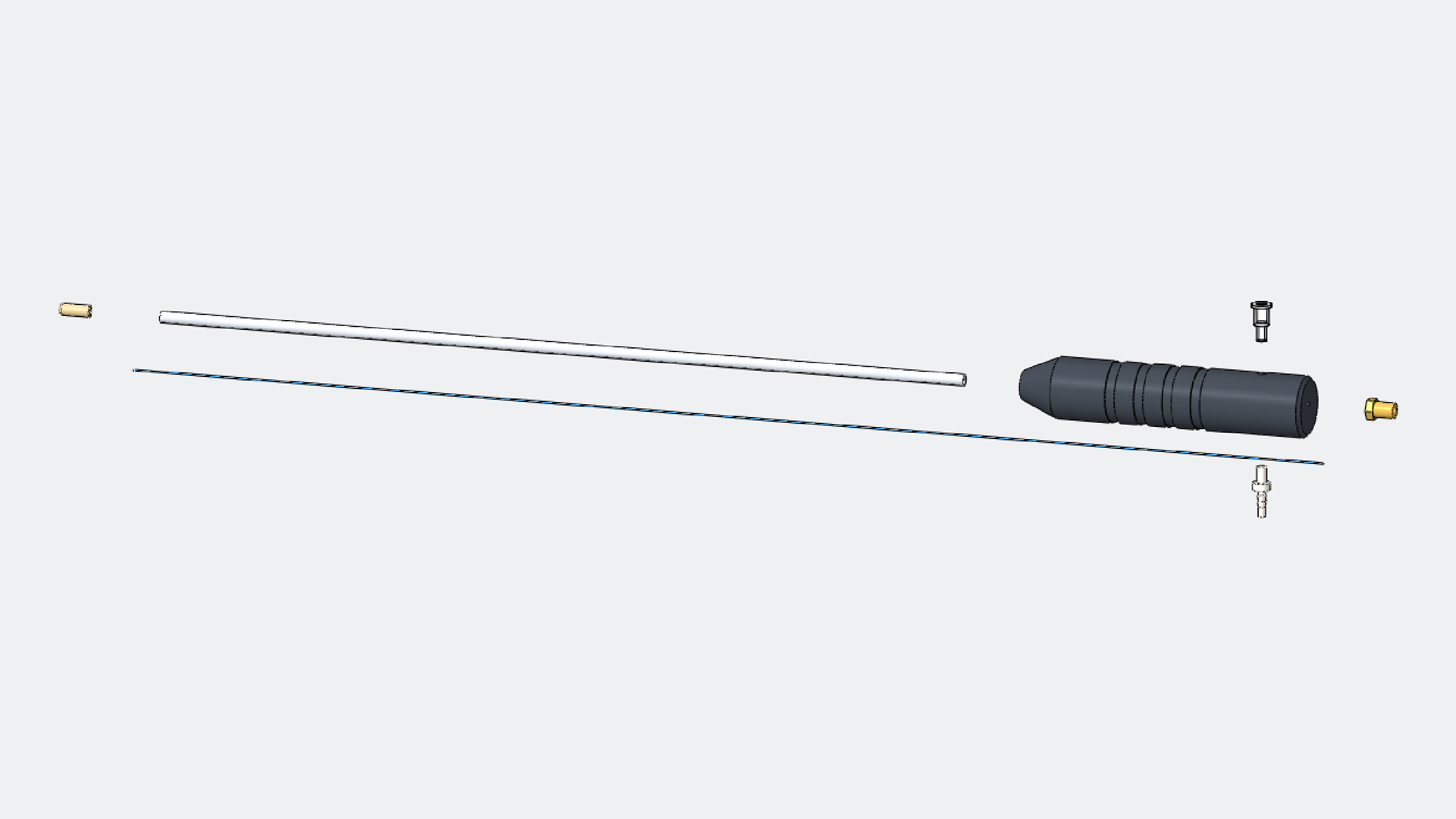

Exploded view of the instrument: distal tip, shaft, optical fiber, handle, gel port, suction port and SMA fiber port.
Exploded

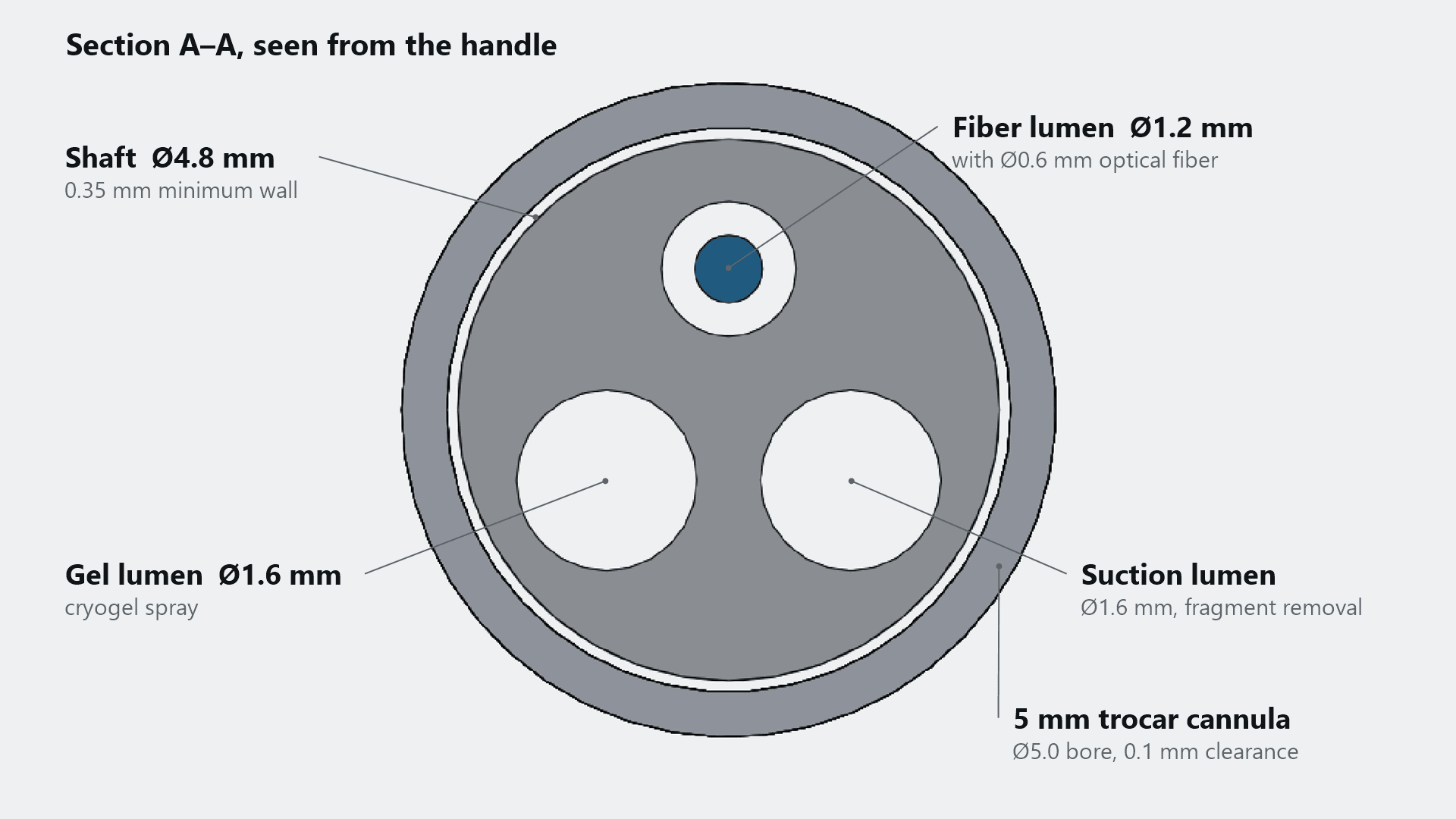

Labelled cross-section of the 4.8 mm shaft inside a 5 mm trocar cannula: a 1.2 mm fiber lumen holding a 0.6 mm optical fiber at the top, 1.6 mm gel and suction lumens below, and 0.1 mm of radial clearance to the cannula.
Section A–A through the shaft, inside a 5 mm trocar
